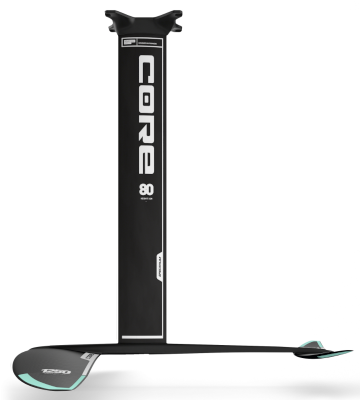

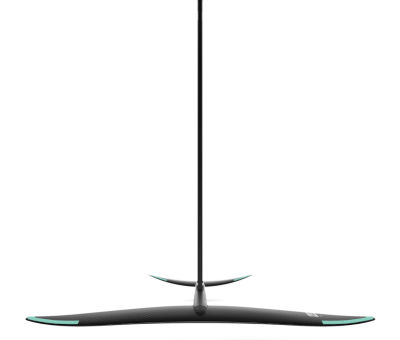

Core SPECTRUM FOIL, giving the perfect blend of baland and control, the SPECTRUM FOIL is an allround foil for beginners through advanced riders. All SPECTRUM FOIL components are compatible with the VERT FOIL series.
Mast: 60 - 70 - 80 - 90 cm
Front wing: 950 - 1250 - 1550 - 1850 - 2150 square cm
Fuselage: 70 cm
Stabilizer: 300 square cm
US box rail system (90mm)
The SPECTRUM FOIL set is delivered with all necessary accessories (mast, frontwing, stabilizer, fuselage, mastbase and screws) as well as the required tools (t-handle tool, tef-gel screw paste) and can be combined with any US box rail system (90 mm).

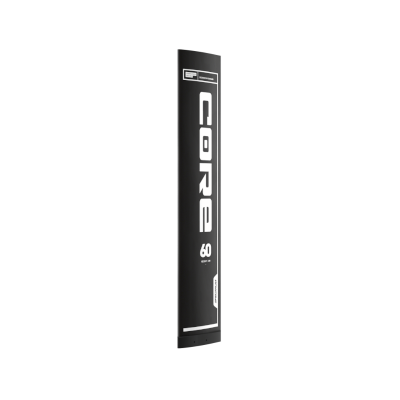

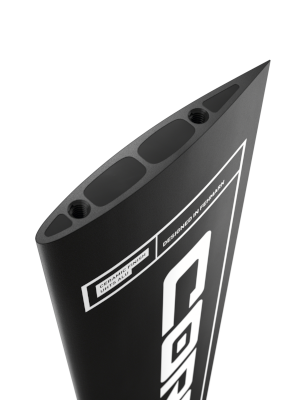

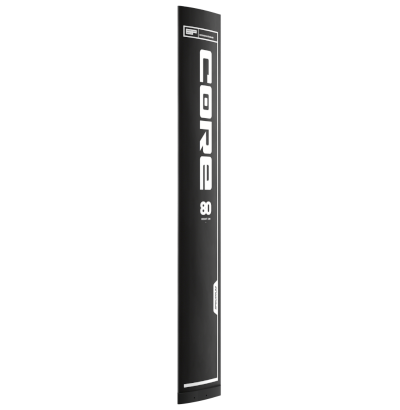

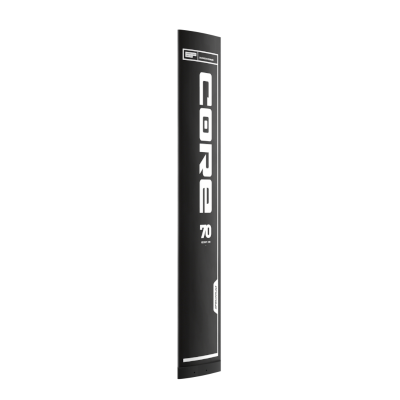

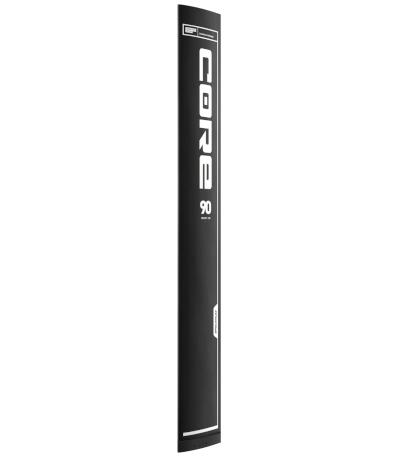

MAST
Made from extruded 6063 aircraft aluminum.
Mast comes with 4 M8x30mm Torx screws.

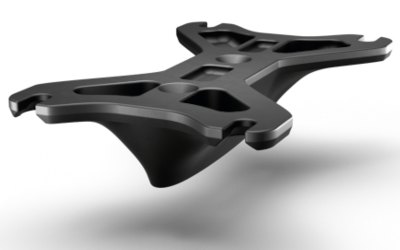

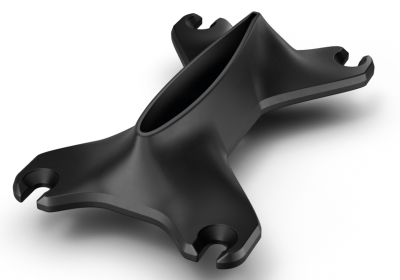

MAST BASE
90mm mast track compatible. Its hydrodynamic profile makes a superlative connection to your board. The deep mast socket provides a tight, secure connection with your foil.
The Mastbase comes with 4 M8x30mm Torx screws and 4 T-nuts.

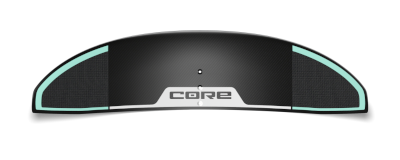

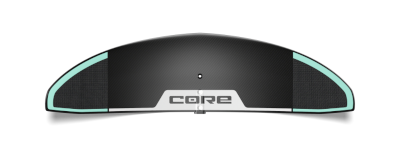

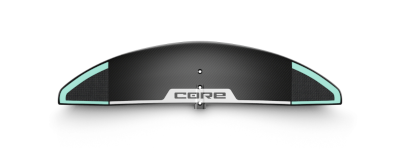

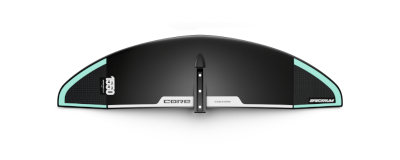

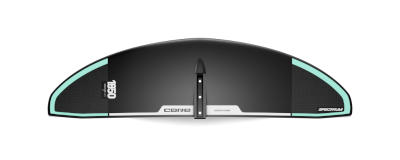

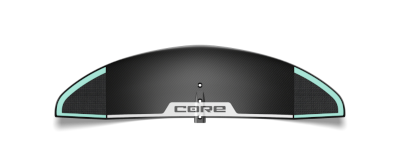

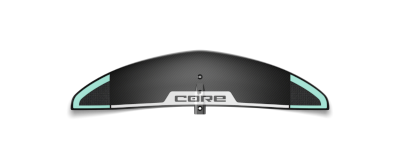

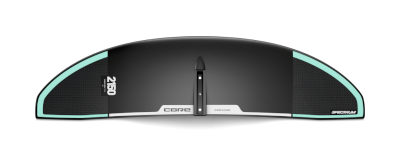

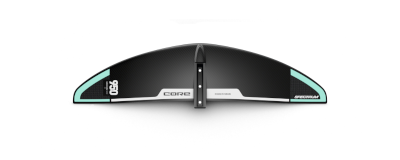

FRONT WING
Each SPECTRUM FOIL front wing has a medium aspect-ratio for the ideal balance of performance and control , resulting in beautifully fluid feeling. Winglets minimize drag while the painstakingly designed profiles throughout allow a sublimely quiet ride quality. Constructed with a multi-layer carbon laminate, the wings are not only light weight but also extremely durable.

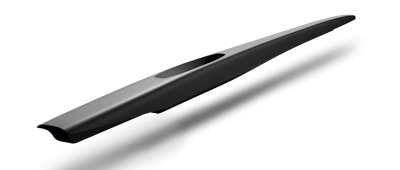

FUSELAGE
70 cm length.
The fuselage comes with five Torx screws (3x M8x20mm, 2x M6x20mm) for mounting front and rear wing.

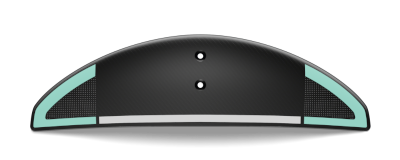

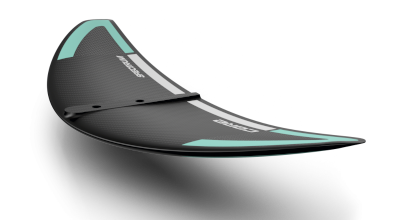

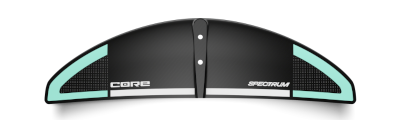

STABILIZER
300 square cm.
Even, predictable flight. Easy, steady takeoffs. And super smooth turns. The larger size imparts a more balanced flight behavior at all speeds. The dihedral curvature lets you tilt the foil into turns like a skateboard for a smoother cruising behavior. Gybes, tacks, 360s, and transitions are much easier since you can feel your back wing and use it to pivot the foil. A high-quality lightweight carbon and PU foam construction is more complex to build than a pure carbon wing but the weight savings is worth it.
